Connecting Solar Inverter to Breaker Box | All You Need to Know About

As solar power has many environmental benefits, you may choose this as a cost-saving option. While installing the solar power system, connecting the solar inverter to the breaker box is one of the crucial steps.

Connecting the solar inverter to the breaker box ensures that the electricity generated by your solar panels is being used efficiently in your home.

If you don’t know the importance or the process of connecting the solar inverter to the breaker box, then this article is just for you. Because, in this article, we’ll explain the necessity of connecting the solar inverter to the breaker box and will show how you can do it. Let’s get started below!

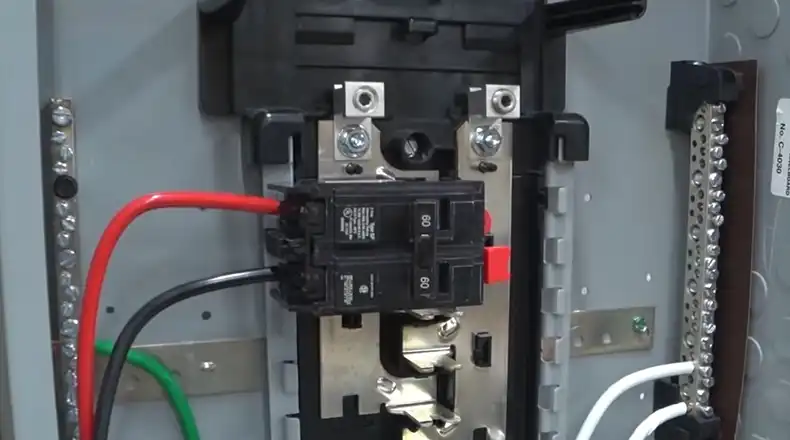

connecting solar inverter to breaker box

Why Is Connecting the Solar Inverter to the Breaker Box Necessary?

We already have mentioned that connecting a solar inverter to the breaker box is a crucial step in the installation of a solar power system. Here are a few reasons why it is important:

  1. To Distribute AC: As solar panel generates Direct Current (DC) and household appliances use Alternative Current (AC), Solar inverter converts DC to AC. By connecting the inverter to the breaker box, the AC power is distributed to your home’s electrical system.
  2. To Provide Safety: Again, Solar power systems must be able to isolate themselves from the grid and your home’s electrical system. While the solar inverter is connected to the breaker box, you can easily control and disconnect switches during maintenance or emergencies.

Here are more reasons why connecting a solar inverter to the breaker box is crucial:

  • To ensure proper grid interaction
  • To optimize energy usage
  • To comply with safety and regulatory standards

To be straightforward, this connection enables the seamless operation of your solar power system with the grid and your household appliances.

How Do You Connect the Solar Inverter to the Breaker Box?

To connect a solar inverter to your breaker, you need to set up the solar panel first. Once your solar panel is ready, follow the steps below:

Step 1: Remove the fuses from the inverter, controller, and junction boxes.

NOTE: The breaker box should be disconnected from the grid in this step.

Step 2: Connect the inverter to the main breaker box using draw cables.

Step 3: Now, connect the solar charge controller to the solar panels.

NOTE: Do not turn on the system in this step. If you need to test it, you can use a multimeter to verify whether the panels can supply enough current or not.

Step 4: Connect the controller to the batteries.

NOTE: If you are finding it hard to manage a lot of wires in this stage, you can use the bas bar junction.

Step 5: Connect the terminals to the inverter from the battery and controller.

Step 6: Ground the remaining open wires

Step 7: Put the fuses back into their slots.

Step 8: Use a multimeter to ensure the current and voltage are running correctly throughout the circuit.

Step 9: Switch on the controller.

Safety Tips While Connecting the Solar Inverter to the Breaker Box

As the installation process of solar panels contains some risks, you should always follow the safety measures during this process. Here are the safety tips:

  • Make sure to turn off the main power supply to your breaker box before starting the work.
  • Always wear insulating gloves while dealing with open wires.
  • Put a fire extinguisher nearby to decrease the risk of a fire outbreak. You are cautioned not to use water.
  • To maintain distance between batteries, use a set of pillars to connect the batteries.
  • Always cover the open end of wires with electrical tape and do not leave the cables open.
  • If you’re not familiar with electrical work, it’s recommended to hire a professional electrician or a solar installer to carry out the installation.

(FAQs) Frequently Asked Questions and Answers

When Should I Connect Solar Panels to The Breaker Box?

You need to make the “LOAD SIDE” connection AFTER the main breaker and the alternative “LINE OR SUPPLY-SIDE” connection BEFORE the main breaker.

Do I Need a Breaker Between the Solar Panel and the Inverter?

Yes, you’ll need 3 to install fuses or breakers at three different locations. First, you’ll need a breaker between the charge controller and battery bank, second, between the charge controller and solar panels and third, you need to use a breaker between the battery bank and inverter.


All the steps to connect the solar inverter to your breaker box are described in this article and we hope you have found this guide helpful in learning that process. If you need any further assistance regarding this topic, don’t hesitate to ask in the comment section below. Best wishes for the installation process of your solar system.
