What Size Cable for a 400W Solar Panel? Let’s Find Out

Have you decided to harness the power of the sun to ensure an eco-friendly electrical system? Solar panels are a fantastic way to reduce your carbon footprint, cut down on those pesky energy bills, and embrace a more sustainable lifestyle. But before you can bask in the glory of solar energy, you’ll need to ensure everything is set up properly, starting with an essential question — What size cable do you need for a 400W solar panel?

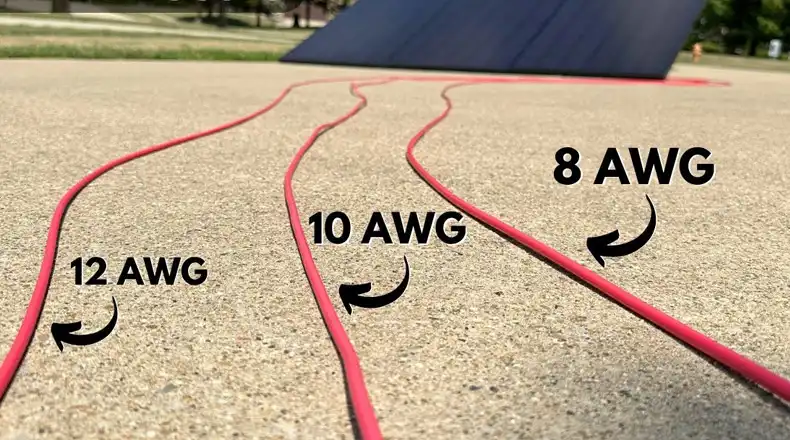

Simply put, for shorter cable runs, say 10-20 feet (3-6 meters), a 10-12 AWG cable for a 12V system and 8-10 AWG for a 24V system should suffice. On the other hand, longer runs in the range of 30-50 feet (9-15 meters) may require 8-10 AWG for a 12V system and 6-8 AWG for a 24V system to minimize power loss.

This post contains relevant information including the ins and outs of selecting the right cable for your 400W solar panel setup. We’ll also provide practical insights and ensure you have all the information you need to get your solar system up and running without a hitch. So, let’s begin!

How Do I Calculating the Right Cable Size

To determine the exact cable size for your 400W solar panel setup, you can use the following formula:

Cable Size = (2 x Length x Current) / (Voltage Drop x Voltage)

In simpler terms, you’ll need to know the length of the cable run, the current generated by your solar panels, and the acceptable voltage drop for your system. With this information, you can calculate the cable size that will ensure minimal power loss.

To make things more convenient, let’s translate that formula into practical terms for various voltage scenarios. Remember, these are general guidelines, and your specific circumstances might require adjustments.

What are the Factors to Consider the Cable Size for a 400W Solar Panel?

Solar panels generate electricity from sunlight, and to get that power into your home or battery bank, you need a cable. The size of this cable is crucial because it determines the efficiency and safety of your solar setup.

So, what size cable do you need for a 400W solar panel? The short answer is that it depends on several factors, including the distance between your solar panels and the charge controller or inverter, the voltage of your system, and the current (amperage) your panels produce. But don’t worry; we’ll break down the factors step by step.

Cable Length

The longer the distance between your solar panels and the charge controller or inverter, the larger the cable you’ll need. This is because longer cables experience more electrical resistance, which can lead to power loss if not properly addressed.

Voltage

Solar panels typically operate at either 12V or 24V. The voltage of your system influences the cable size, as higher-voltage systems can use smaller cables for the same amount of power.

Current

The current your solar panels produce, measured in amps, also plays a crucial role in cable selection. Panels with higher amperage require thicker cables to minimize power loss due to resistance.

Voltage Drop

You’ll want to ensure that the voltage drop is minimal. Voltage drop can lead to efficiency losses, and it’s a concern primarily when you have longer cable runs. We’ll discuss how to calculate and mitigate this issue.

Selecting The Cable Size

• For a 400W solar panel with a voltage of 12V, you will need a cable with a minimum AWG of 10.
• Similarly, for a 24V 400W solar pane, the cable requirement is a minimum AWG of 12.
• Lastly, for a 48V 400W solar panel, you should go for a minimum of 14 AWG cable.

NOTE: If the cable is longer than 10 feet or if the ambient temperature is high, you may need to use a larger cable size.

Myth Busting: Bigger Isn’t Always Better

Don’t fall into the trap of thinking that the biggest cable available is the best choice. Using an oversized cable can actually be counterproductive as it’s more expensive and can be less flexible, making installation a hassle.

Commonly Asked Questions with Answers

Can I use a standard extension cord for my solar panel setup?

It’s not recommended. Extension cords aren’t designed for the constant exposure to sunlight and weather conditions that solar panel cables endure. Use appropriate solar-rated cables for safety and performance.

What happens if I use the wrong cable size?

Using the wrong cable size can lead to power loss, reduced efficiency, and even potential safety hazards due to overheating. It’s essential to choose the right cable size for your system.

Can I use multiple smaller cables instead of one large cable?

Yes, you can use parallel cables to achieve the equivalent thickness of a larger cable. This can be useful if you already have smaller cables on hand.

Do I need a professional to install my solar panel cables?

While it’s possible to install the cables yourself, it’s often a good idea to consult a professional or follow the manufacturer’s guidelines to ensure safety and optimal performance.

Are there any safety precautions I should take when working with solar panel cables?

Yes, always shut down the solar system before working on it, use appropriate safety gear, and ensure you’re familiar with electrical safety guidelines.
