Is Eco-Drive Watch Solar Powered? Ultimate Explanation

Eco-Drive watches are powered by light – both natural and artificial. This innovative technology allows the watch to be charged by any light source, eliminating the need for traditional watch batteries that must be periodically replaced. But how exactly does an Eco-Drive watch harness power from light? Let’s take a closer look at what makes this solar-powered timepiece tick.

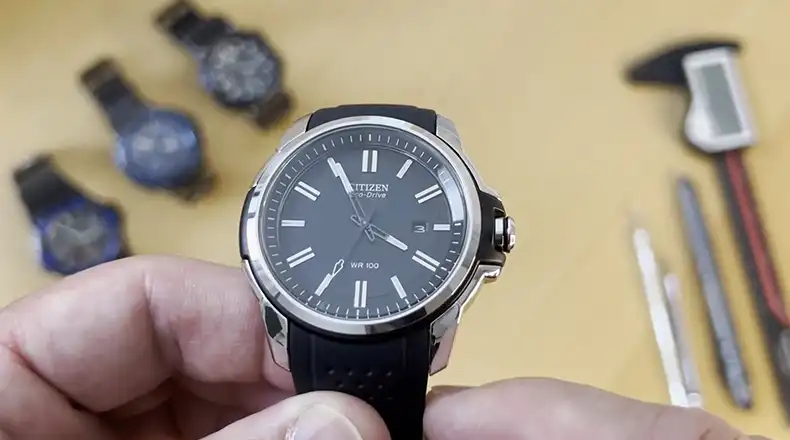

Is Eco-Drive Watch Solar Powered

What is Eco-Drive Technology?

Eco-Drive is a proprietary technology developed and used exclusively by Citizen watches. Before the Eco-Drive 7878 movement, light-powered watches had solar cells (the parts that convert light into energy) mounted directly on the dial, making them visible. This limited the design possibilities for these watches.

The Eco-Drive 7878 movement revolutionized light-powered watches by allowing the solar cells to be placed under the dial, hidden from view. This was made possible by advancements in thin-film amorphous silicon solar cells, which became more efficient in the early 1990s.

By using a translucent dial material, enough light could pass through to power the movement while keeping the solar cells hidden. This opened up new design possibilities for Eco-Drive watches, making them more stylish and versatile.

It converts both natural and artificial light into energy using solar-powered cells integrated into the watch face. This electricity charges an internal storage cell, powering all of the watch’s functions.

An Eco-Drive timepiece essentially transforms light photons into electrical energy with a miniature solar panel under the dial. This power cell can then provide a charge that lasts up to six months on a full charge, even while kept in darkness. The self-contained power supply is continually replenished whenever the solar panel is exposed to light.

How Does an Eco-Drive Watch Get Power?

At the heart of every Eco-Drive timepiece is a tiny but highly efficient solar panel that sits just underneath the watch crystal and dial. It absorbs any available light – whether from the sun, indoor lamps, or a flashlight beam – and converts it into electrical current.

This electrical energy then travels to a rechargeable lithium-ion power cell where it is stored for use. This functions similarly to a capacitor in other electronics, maintaining a charge until needed by the internal mechanisms of the timepiece. The longer the Eco-Drive watch is exposed to light, the more energy can be stockpiled in reserve.

When extra power is required, such as when moving the watch hands or illuminating the dial at night, the stored charge is released from the power cell to drive the movement. As long as there is sufficient ambient light during normal wear, the Eco-Drive system maintains a continuous closed loop of light-to-electricity conversion, energy storage, and on-demand power for the watch.

Type of Solar Cells Use in Eco Drive Watch

There are two primary solar cell shapes and designs utilized across different Eco-Drive watch models:

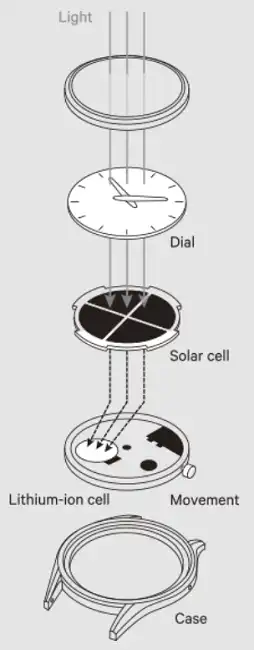

Dial Shaped Solar Cell

This is the most common configuration in which a thin solar panel is cut to match the entire dial area before being laminated under the face of the watch. The solar cells essentially become the background of the watch face with indices and markings printed over top. With a large surface area spread across the dial, this style absorbs the maximum amount of light exposure in all environments and positions. It’s less noticeable from the exterior but maximizes energy collection internally.

Dial Shaped Solar Cell

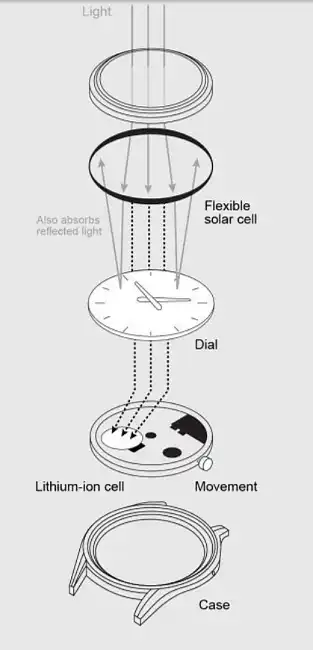

Ring Shape Solar Cell

Some Eco-Drive models position a ring of solar cells around the outer edge of the dial instead of situating it behind the entire face. This compact solar cell collects light that shines onto the bezel and periphery of the watch case. While not as omnidirectional and constantly exposed as a solar dial, this arrangement blends in even better aesthetically while still reliably charging the internal power cell during normal wear.

Ring Shape Solar Cell

Benefits of Watch with Eco-Drive Technology

There are numerous advantages to choosing an Eco-Drive watch over traditional battery-powered timepieces:

Never Needs Battery Replacement – Since ambient light constantly recharges the built-in power cell, the watch essentially runs perpetually without requiring routine battery changes. This convenience saves on periodic replacement costs over the multi-decade lifespan of the watch movement.

Solar Powered Sustainability – Eco Drive eliminates disposable watch batteries containing toxic chemicals. By utilizing reusable solar cells instead, the self-contained system has less environmental impact over years of use. The watch movement is also mercury-free.

Stable Power Supply – Once fully charged, the watch can run up to 6 months in total darkness without additional exposure to light. This makes it highly reliable even if stored away and ensures normal operation as long as it regularly receives some ambient light.

Low Maintenance & Continuous Operation – There are no moving solar panels to manually adjust and no concern over permanently drained batteries rendering the watch inoperable. As long as any light hits the dial periodically, the Eco-Drive system maintains steady power production.

Choosing an Eco-Drive solar-powered timepiece brings the convenience and stability of continuous charging from ambient light, eliminating the need to replace watch batteries. With innovative technology scaled down to fit elegantly on the wrist, Citizen’s proprietary system offers sustainable energy for reliable timekeeping.

So in summary – yes, Eco-Drive watches are essentially solar-powered by converting light into electricity used to drive all functions. Both natural and artificial light can continually recharge the built-in power cell, keeping the timepiece running perpetually without traditional disposable watch batteries.

Frequently Asked Questions

What kinds of light can charge an Eco-Drive watch?

Any light source whether natural or artificial can provide energy to an Eco-Drive timepiece – including sunlight, indoor lamps, flashlight beams, camera flashes, and more. As long as photons reach the solar cells, electricity can be produced to recharge the integral power cell.

How long can an Eco-Drive watch run in total darkness?

A fully charged Eco-Drive watch has an estimated power reserve lasting anywhere from one to six months while kept in complete darkness without any additional exposure to light. The exact duration depends on specific caliber and complications.

Can an Eco-Drive watch be overcharged or damaged from too much light?

No. Once the internal lithium-ion power cell reaches full capacity, the charging system shuts off automatically to prevent any possibility of overcharging, even if continually exposed to bright light. There are fail-safes built into the photovoltaic module as well.

How can I ensure my Eco-Drive watch stays powered in low-light conditions?

Try to provide at least occasional indirect sunlight or bright indoor lamplight on the watch dial to maintain charging levels. Storing the timepiece in darkness for extended periods can drain the power cell, requiring brighter light exposure to resuscitate it.

Do scratches on the crystal impact the charging capability of an Eco-Drive watch?

Very fine superficial scratches will have negligible effect. But deeper abrasions blocking significant portions of light transmission through the crystal can interfere with the solar cells receiving photons for electricity generation. In that situation, replacing the crystal would be advised.

End Notes

The innovative Eco-Drive system removes the nuisance of replacing batteries in quartz watches by harnessing reusable solar energy from any light source. With solar cells integrated unobtrusively into the dial coupled with a backup power cell, Eco-Drive combines self-contained sustainability for reliable timekeeping with classic horology styling. Never needing a battery change while avoiding toxic disposable cells, an Eco-Drive solar-powered timepiece brings convenience and environmental friendliness to your wrist for years of maintenance-free operation.

I hope this overview helped explain exactly how Eco-Drive technology leverages tiny but mighty solar cells to continuously recharge the watch just from ambient light. Let me know in the comments if you have any other questions about these innovative self-powered timepieces! Thanks for reading.
